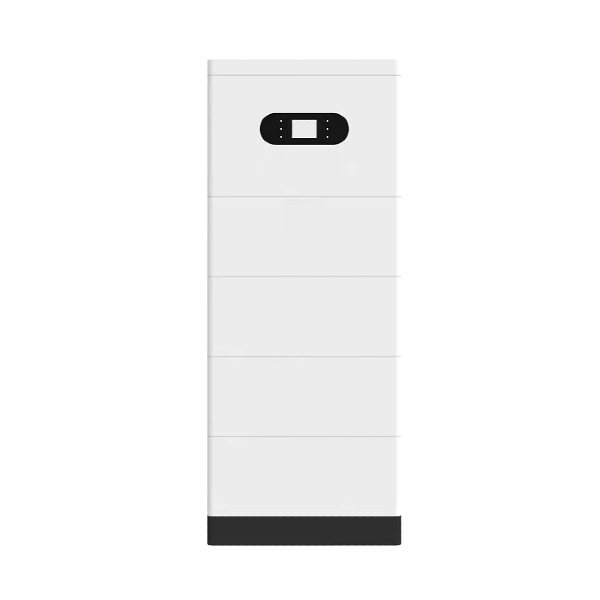

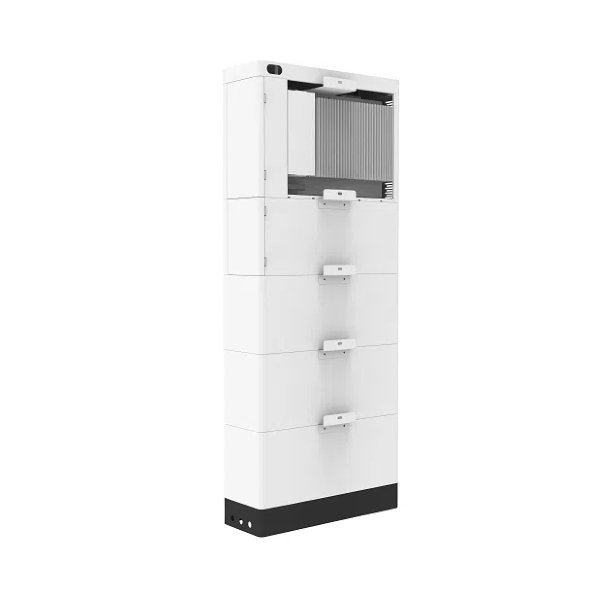

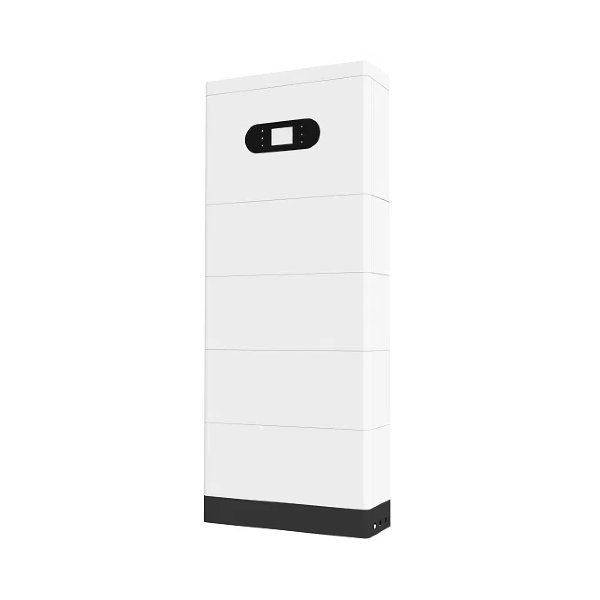

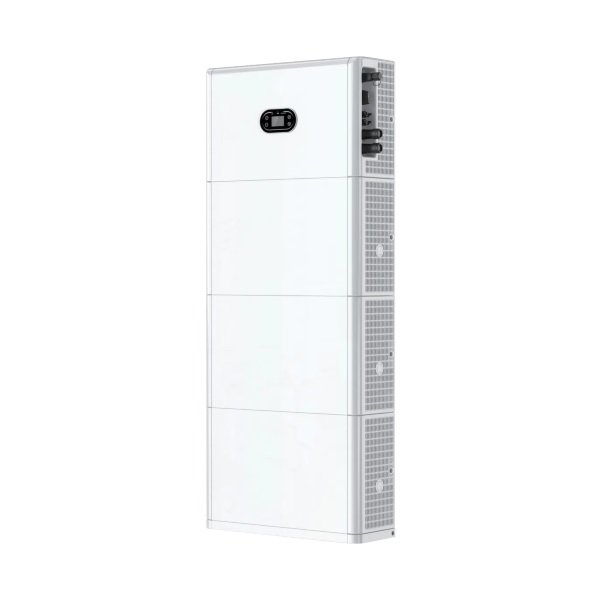

AK POWER All-in-one energy storage system is very popular choice for residential energy storage, which is designed with EVE brand new prismatic LiFePO4 battery cell 3.2V 100Ah and 100A intelligent BMS. It provides 10kwh to 20kwh power for home energy storage demand. You can charge it by solar panels, diesel generators; This 48V lithium battery adopts LiFePO4 technology, which has the highest safety with CE, RoHS, UL certificates and the longest life more than 8000 cycles; and its management system provides comprehensive protection as well as real-time monitoring.
Main Features
- Grade A Quality Ak power always adopt 100% grade a qualified lifepo4 cells, of EVE, CATL, BYD, or Gotion brands; with each cells of original QR Code and 100% capacity; which assures the battery cycling life and operation performance;
- 100% BMS Protection Batteries are built with top level intelligent BMS which protects it from short-circult, over charging and discharging, over current and other dangerous situations; you have no worry about its safety and working life;
- Super Easy Install This stackable energy storage battery adopt 5.12KWh modules which can be easily stacked one by one and its total energy can be added up to 20.48KWh, satisfying most power consumption demands; it not only save installation cost and also convenient for power ;
- Unbeatable Price AK POWER is 10-years-developed manufacturer of lithium batteries which has strategic cooperation with materials supplier, especially the cells and bms; and our mission is to help customers grow and expanding business; you can get the ever best price for cooperation here;
- Warranty AK POWER provides the longest 10 years warranty in order to support customers in overall services
Specification
| Battery Data | |
| Battery Type | LiFePO4 Battery |
| Module Voltage | 51.2V |
| Module Capacity | 100Ah |
| Module Voltage Range | 44.8V~56.16V |
| Max Charging/Discharging Current | 100A |
| Dimension | 640*375*210mm |
| Battery Energy Choice | 5.12KWh/10.24KWh/15.36KWh/20.48KWh |
| Cycle Life | 6000cylces @25℃,0.5C 80% DOD |
| Inverter | |
| Power Choice | 4.5KW~9KW |
| Input(PV ) | |
| Max PV Input Power | 4.5KW/5.4KW/6KW/6.9KW/7.5KW/9KW |
| Max PV Input Voltage | 600V |
| MPPT Voltage Range | 100V~550V |
| Max PV Input Current | 16A |
| Max Short Circuit Current/MPPT | 24A |
| Output(AC) | |
| Rated Output Power | 3KW/3.68KW/4KW/4.6KW/5KW/6KW |
| Max Output Power | 3.3KVA/3.68KVA/4.4KVA/4.6KVA/5.5KVA/6KVA |
| Max Output Current | 15A/16A/20A/20.9A/22.7A/26.1A |
| Rated Voltage | 230V |
| Rated Frequency | 50Hz/60Hz |
| Efficiency | |
| Max Efficiency | 97.50% |
| Max Battery Charge/Discharge Efficiency | 95% |
| General Data | |
| Working Temperature | -10 ℃-55 ℃ |
| Internal Resistance | ≤40 mΩ |
| Self Consumption | ≤10W |
| Protection Degree | IP65 |
| Communication | CAN/RS485/RS232 |
| Warranty | 10 years |
BMS Features
● Over charging protection
● Over discharge protection
● Over current protection
● Temperature protection
● Short circuit protection
● Real time monitoring of each cell
● Auto balance between battery cells

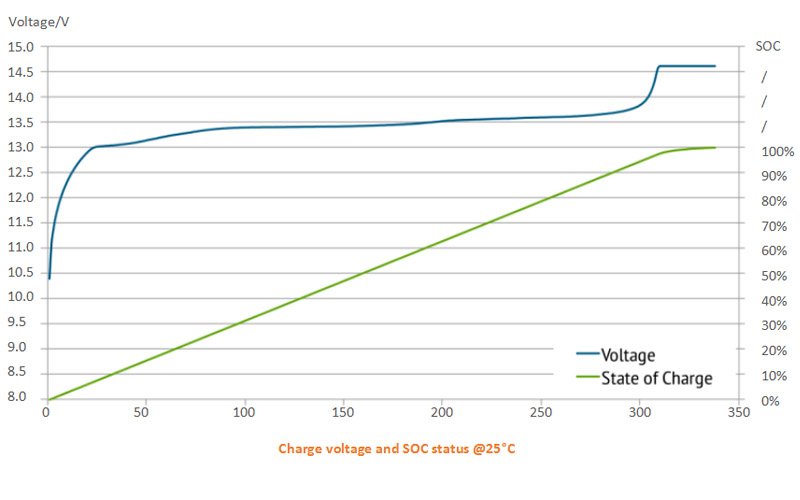

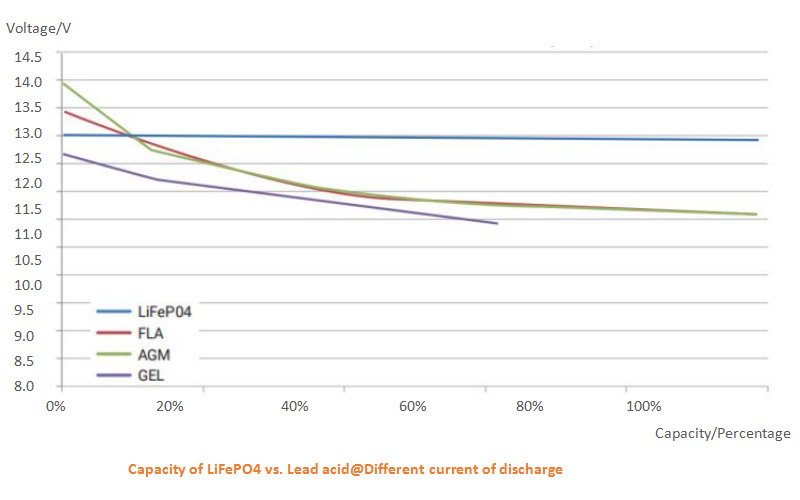

Test Graphs
Applications
