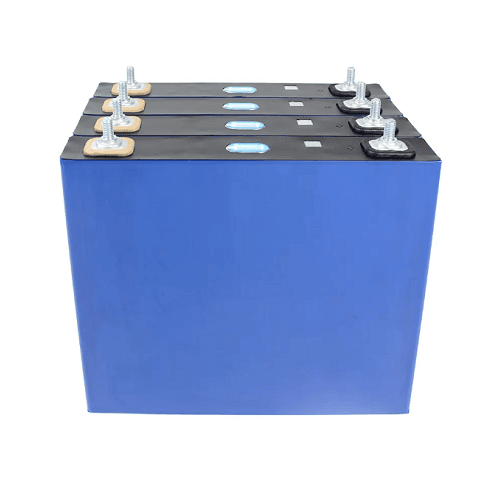

CATL 3.2V 100Ah lifepo4 battery
CATL 3.2V 100Ah Prismatic LiFePO4 Battery - Image 2

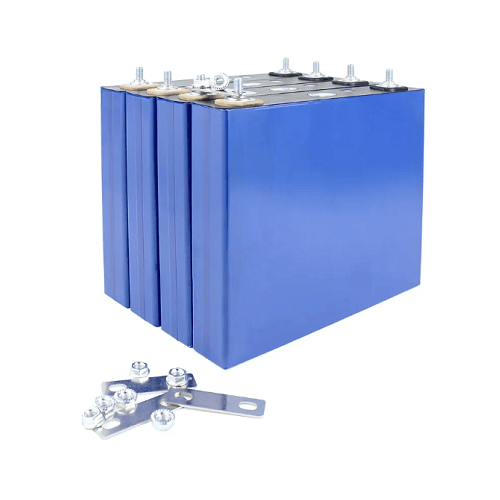

CATL 3.2V 100Ah Prismatic LiFePO4 Battery - Image 3

CATL 3.2V 100Ah Prismatic LiFePO4 Battery

Nominal Voltage: 3.2V

Nominal Capacity: 100Ah

Nominal Energy: 320Wh

Discharge Rate: 0.5~1C

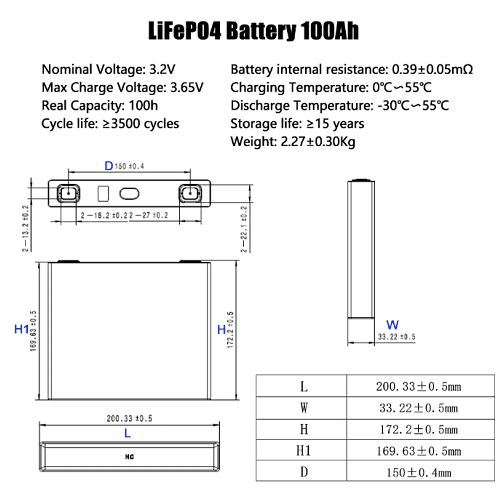

Dimension: 200.33*172.2*33.22±0.5mm

Net Weight: 2.27±0.30Kg

Application: energy storage, RV/forklift/golf cart/yacht power batteries

Request Quote

Main Features

CATL 100Ah LiFePO4 Battery has real cycling 8000 times widely applied for energy storage motive power CE UL certified

CATL 3.2v 314Ah lifepo4 battery terminals
CATL 3.2v 314Ah lifepo4 battery parts

Specification

Product NameEVE 3.2V Prismatic Cell
ModelCATL100Ah
Brand NameCATL
Rated capacity100Ah
Nominal Voltage3.2V
Nominal Energy320Wh
Max Discharge Current0.5C/1C
Max Charge Voltage3.65v
AC Impedance Resistance0.39±0.05mΩ
Charging Temperature0℃~55℃
Discharging Temperature-30℃ ~55℃
Cycle Lifetheoritical 6000 cycles, 80% SOH(25℃)
Net Weight2.27±0.30Kg
Dimensions (L*W*H)200.33*172.2*33.22±0.5mm
Warranty3years
ApplicationsElectric Power Systems, Solar Energy Storage Systems

Applications

ak power eve MB31 3.2V 314Ah applications
CATL 3.2v 314Ah lifepo4 battery stock available
ak power lifepo4 battery best price
ak power lifepo4 battery large stock
