ak power eve 3.2V 230Ah

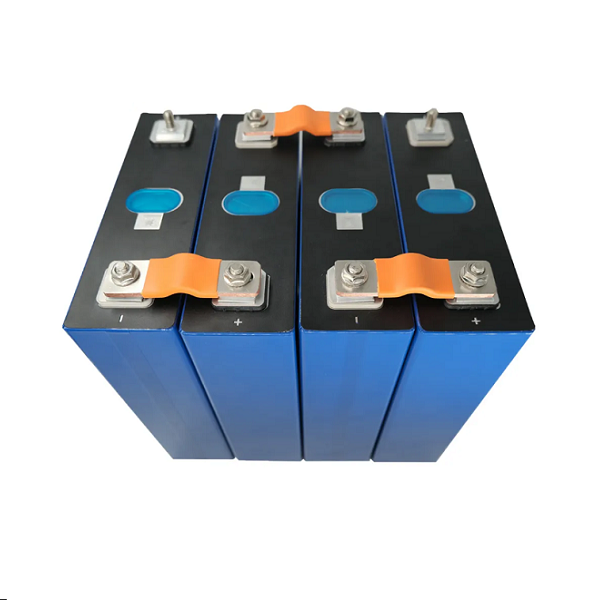

ak power eve 3.2V 230Ah cells
EVE 3.2V 230Ah Prismatic LiFePO4 Cell - Image 3

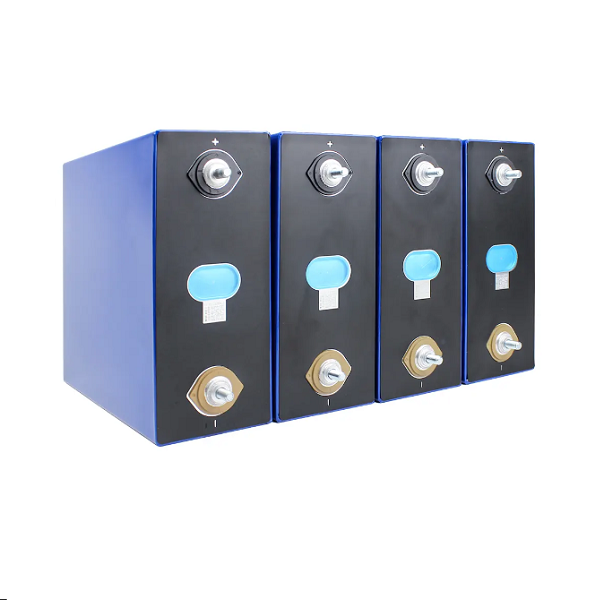

EVE 3.2V 230Ah Prismatic LiFePO4 Cell

Nominal Voltage: 3.2V

Nominal Capacity: 230Ah

Nominal Energy: 736Wh

Discharge Rate: 0.5~1C

Dimension: 210*175*54mm

Net Weight: 4500g

Application: energy storage, RV/forklift/golf cart/yacht power batteries

Request Quote

Main Features

EVE 230Ah has real cycling 8000 times above according to official testing

ak power eve 230Ah features
ak power eve304Ah advantage

Specification

Product NameEVE 3.2V Prismatic Cell
ModelLF230
Brand NameEVE
Rated capacity230Ah
Nominal Voltage3.2V
Nominal Energy736Wh
Max Discharge Current0.5P~1P
Max Charge Voltage3.65v
AC Impedance Resistance0.20 mΩ
Charging Temperature0~50℃
Discharging Temperature-30~60℃
Cycle Lifetheoritical 8000 cycles, 80% SOH(25℃)
Net Weight4500 g
Dimensions (L*W*H)210*175*54mm
Warranty3years
ApplicationsElectric Power Systems, Solar Energy Storage Systems

Applications

ak power eve MB31 3.2V 314Ah applications
